MOS管为压控元件,你只需加到它的压控元件所需电压就能使它导通,它的导通就像三极管在饱和状态一样,导通结的压降最小.这就是常说的精典是开关效果.去掉这个操控电压经就截止。

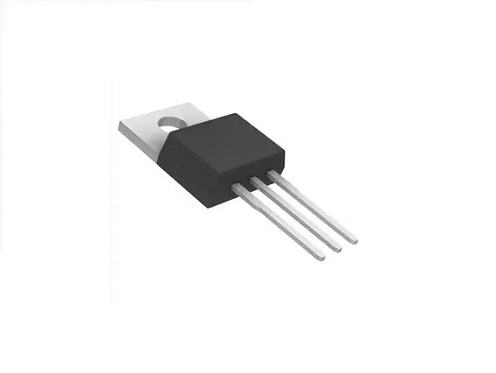

MOS管的英文全称叫MOSFET(Metal Oxide Semiconductor Field Effect Transistor)，即金属氧化物半导体型场效应管，归于场效应晶体管中的绝缘栅型。因此，MOS管有时被称为场效应管。在一般电子电路中，MOS管通常被用于扩大电路或开关电路。
我公司代理的MOSFET涵盖了低压MOSFET的大部分封装，电压，电流，主推型号可以参考如下表格：
产品详情
|
Product Name |
Polarity |
with ESD |
Package |
Vds(V) |
ID(A) |
Vth(V) |
VGS(V) |
RDS (on) @10V,mΩ |
RDS (on) @10V,mΩ |
RDS (on) @4.5V,mΩ |
RDS (on) @4.5V,mΩ |
|
typ |
typ |
max |
typ |
max |
|||||||
|
JMTK90N02A |
N |
NO |
TO-252-4R |
20 |
90 |
0.7 |
±12 |
- |
- |
2.8 |
4 |
|
JMTQ90N02A |
N |
NO |
PDFN3.3X3.3 |
20 |
60 |
0.7 |
±12 |
- |
- |
2.8 |
4 |
|
JMTK75N02A |
N |
NO |
TO-252-4R |
20 |
75 |
0.7 |
±12 |
- |
- |
4.1 |
5 |
|
JMTQ050N02A |
N |
NO |
PDFN3.3X3.3 |
20 |
50 |
0.7 |
±12 |
- |
- |
3.8 |
5 |
|
JMTK2006A |
N |
NO |
TO-252-4R |
20 |
60 |
0.7 |
±12 |
- |
- |
4.8 |
6.5 |
|
JMTK2007A |
N |
NO |
TO-252-4R |
20 |
50 |
0.7 |
±12 |
- |
- |
6.3 |
8 |
|
JMTK100N02A |
N |
NO |
TO-252-4R |
20 |
30 |
0.75 |
±12 |
- |
- |
8 |
11.2 |
|
JMTJ100N02A |
N |
NO |
SOT-23-3L |
20 |
8 |
0.75 |
±12 |
- |
- |
11 |
14 |
|
JMTP9926A |
Dual-N |
NO |
SOP-8 |
20 |
6.5 |
0.7 |
±12 |
- |
- |
14 |
22 |
|
JMTL2312A |
N |
NO |
SOT-23 |
20 |
6.8 |
0.65 |
±10 |
- |
- |
16 |
21 |
|
JMTM8205A |
Dual-N |
NO |
SOT-23-6L |
20 |
5 |
0.66 |
±12 |
- |
- |
18 |
26 |
|
JMTL2302A |
N |
NO |
SOT-23 |
20 |
4 |
0.85 |
±12 |
- |
- |
21 |
27 |
|
JMTL2302C |
N |
NO |
SOT-23 |
20 |
4 |
0.7 |
±12 |
- |
- |
21 |
27 |
|
JMTJ2302C |
N |
NO |
SOT-23-3L |
20 |
4 |
0.7 |
±12 |
- |
- |
22 |
29 |
|
JMTP9926B |
Dual-N |
NO |
SOP-8 |
20 |
6 |
0.7 |
±12 |
- |
- |
20 |
28 |
|
JMTT8205A |
Dual-N |
NO |
TSSOP-8 |
20 |
5 |
0.66 |
±12 |
- |
- |
22 |
28 |
|
JMTL2302B |
N |
NO |
SOT-23 |
20 |
3 |
0.7 |
±12 |
- |
- |
45 |
55 |
|
JMTL2002KT2 |
N |
YES |
SOT-23 |
20 |
0.75 |
0.65 |
±10 |
- |
- |
250 |
380 |
|
JMTL2002KT3 |
N |
YES |
SOT-323 |
20 |
0.75 |
0.65 |
±10 |
- |
- |
250 |
380 |
|
JMTL2002KT5 |
N |
YES |
SOT-523 |
20 |
0.75 |
0.65 |
±10 |
- |
- |
250 |
380 |
|
JMTL2002KT7 |
N |
YES |
SOT-723 |
20 |
0.75 |
0.65 |
±10 |
- |
- |
250 |
380 |
|
JMTL2002KDTW |
Dual-N |
NO |
SOT-363 |
20 |
0.75 |
0.65 |
±10 |
- |
- |
250 |
380 |
|
JMTG3002B |
N |
NO |
PDFN5X6-8L |
30 |
120 |
1.5 |
±20 |
1.8 |
2.4 |
3.2 |
5 |
|
JMTE018N03A |
N |
NO |
TO-263 |
30 |
190 |
1.6 |
±20 |
1.7 |
2.3 |
2.6 |
3.7 |
|
JMTK018N03A |
N |
NO |
TO-252-4R |
30 |
190 |
1.6 |
±20 |
2 |
2.6 |
3 |
4.2 |
|
JMTE3002B |
N |
NO |
TO-263 |
30 |
180 |
1.5 |
±20 |
1.95 |
2.4 |
3.5 |
5 |
|
JMTK3002B |
N |
NO |
TO-252-4R |
30 |
180 |
1.5 |
±20 |
2.1 |
2.7 |
3.5 |
5 |
|
JMTE3003A |
N |
NO |
TO-263 |
30 |
150 |
1.5 |
±20 |
2.3 |
3 |
4.2 |
6 |
|
JMTC3003A |
N |
NO |
TO-220C |
30 |
150 |
1.6 |
±20 |
2.3 |
3 |
4.2 |
6 |
|
JMTG3003A |
N |
NO |
PDFN5X6 |
30 |
90 |
1.6 |
±20 |
2.4 |
3.2 |
4.5 |
6.2 |
|
JMTQ3003A |
N |
NO |
PDFN3.3X3.3 |
30 |
80 |
1.6 |
±20 |
2.5 |
3.3 |
4.5 |
6.5 |
|
JMTK3003A |
N |
NO |
TO-252-4R |
30 |
150 |
1.6 |
±20 |
2.5 |
3.3 |
4.5 |
6.5 |
|
JMTG040N03A |
N |
NO |
PDFN5X6-8L |
30 |
80 |
1.5 |
±20 |
2.8 |
4 |
4.7 |
6.5 |
|
JMTK3004A |
N |
NO |
TO-252-4R |
30 |
100 |
1.5 |
±20 |
2.9 |
4 |
4.8 |
6.5 |
|
JMTK3005L |
N |
NO |
TO-252-4R |
30 |
90 |
1.1 |
±20 |
3 |
4 |
4.7 |
6.6 |
|
JMTI3005A |
N |
NO |
TO-251-4R |
30 |
90 |
1.5 |
±20 |
3.3 |
4.5 |
5.8 |
9.5 |
|
JMTK3005A |
N |
NO |
TO-252-4R |
30 |
90 |
1.5 |
±20 |
3.3 |
4.5 |
6.7 |
9.5 |
|
JMTQ3005A |
N |
NO |
PDFN3.3X3.3 |
30 |
50 |
1.5 |
±20 |
3.5 |
4.7 |
7 |
10 |
|
JMTK3005C |
N |
NO |
TO-252-4R |
30 |
90 |
1.5 |
±20 |
3.8 |
5 |
7 |
10 |
|
JMTC3005A |
N |
NO |
TO-220C |
30 |
90 |
1.5 |
±20 |
3.8 |
5 |
7 |
10 |
|
JMTG3005A |
N |
NO |
PDFN5X6-8L |
30 |
60 |
1.5 |
±20 |
3.8 |
5 |
7.5 |
11 |
|
JMTP045N03A |
N |
NO |
SOP-8 |
30 |
20 |
1 |
±20 |
4.6 |
6 |
6.1 |
8.6 |
|
JMTK3006B |
N |
NO |
TO-252-4R |
30 |
70 |
1.5 |
±20 |
4.8 |
6 |
7.5 |
12 |
|
JMTQ3006B |
N |
NO |
PDFN3.3X3.3 |
30 |
40 |
1.5 |
±20 |
4.9 |
6.5 |
7.9 |
12.9 |
|
JMTK50N03A |
N |
NO |
TO-252-4R |
30 |
50 |
1.5 |
±20 |
5.8 |
7.5 |
10 |
14 |
|
JMTG3008A |
N |
NO |
PDFN5X6-8L |
30 |
40 |
1.5 |
±20 |
6.6 |
8.6 |
11 |
15 |
|
JMTQ3008A |
N |
NO |
PDFN3.3X3.3 |
30 |
30 |
1.5 |
±20 |
6 |
8 |
9.5 |
14 |
|
JMTP3008A |
N |
NO |
SOP-8 |
30 |
15 |
1.5 |
±20 |
6.2 |
8 |
10 |
14 |
|
JMTV3010A |
N |
NO |
DFN2X2-6L |
30 |
20 |
1.5 |
±20 |
7.6 |
10 |
11.5 |
17 |
|
JMTK100N03A |
N |
NO |
TO-252-4R |
30 |
40 |
1.5 |
±20 |
7.6 |
10 |
11.5 |
17 |
|
JMTP4406A |
N |
NO |
SOP-8 |
30 |
13 |
1.5 |
±20 |
8.8 |
12 |
13 |
18 |
|
JMTP3010D |
Dual-N |
NO |
SOP-8 |
30 |
12 |
1.5 |
±20 |
9 |
12 |
13 |
18 |
|
JMTQ3010D |
Dual-N |
NO |
PDFN3.3X3.3 |
30 |
22 |
1.5 |
±20 |
10 |
13 |
14 |
19 |
|
JMTK120N03A |
N |
NO |
TO-252-4R |
30 |
20 |
1.5 |
±20 |
10 |
13 |
16 |
22.6 |
